New Plan (Measure rooms and draw floor plan)

Young Couple measuring room size

Sketch your Floor Plan

If the property is old or if you have lost the floor plan we can help you with a new plan.

Send us your measurements of the rooms, as sketch and some photos of key rooms like bath, ENS, kitchen and laundry.

We will convert your rough measurements into a final floor plan.

See the sample of a floor paln below.

We also provide measurement services on site for additional charges. It takes approx. 1 hour to 1.5 hours to do the floor plan measurement of 4x2 single storey house. (This service is currently available only in Perth and its surrounding suburbs.)

Hand Sketch of house plan after taking the measurement.

Hand sketched floor plan

Colour Floor Plan using above drawing.

efloor plan of a property

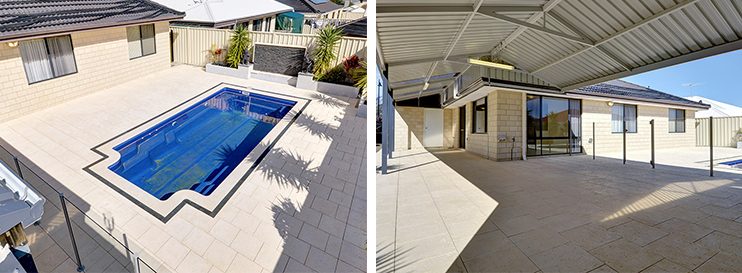

Reference Photos:

Details like pool, patio and glass fence were added to the floor plan using reference photos

Image of a swiming pool and patio

 Some helpful links to measure you room:

1  Lowe's never stop improving - Measure a Room

2 CNET Quickly measure rooms - Create floor plans with Magic Plan

3 Digital Trends Ditch that tape measure

4 Leica Laser Distance Measure
